ECG Module AD8232 ECG Measurement Pulse Heart ECG Monitoring Sensor Module kit for R3
Product Specification:
- A single module can drive an 8 * 8 common cathode lattice
- Module Operating voltage: 5V.
- Wiring instructions: 1. The module left side as an input port and the output port on the right; 2. To control a single module, just connect the input port to the CPU; 3. When cascading multiple modules, the input port of the first module connect to the CPU, the output port connect to the input port of the second one, and so on.
- Size: 5 x 3.2 x 1.5 cm (L x W x H); With four screws hole, aperture 3mm; With input and output interfaces, supports multiple modules cascade.

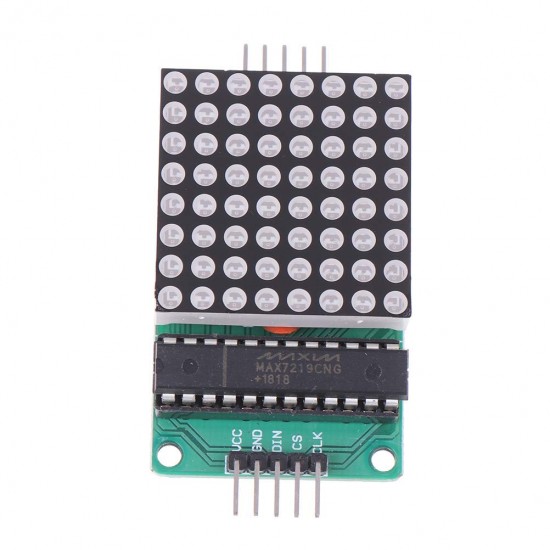

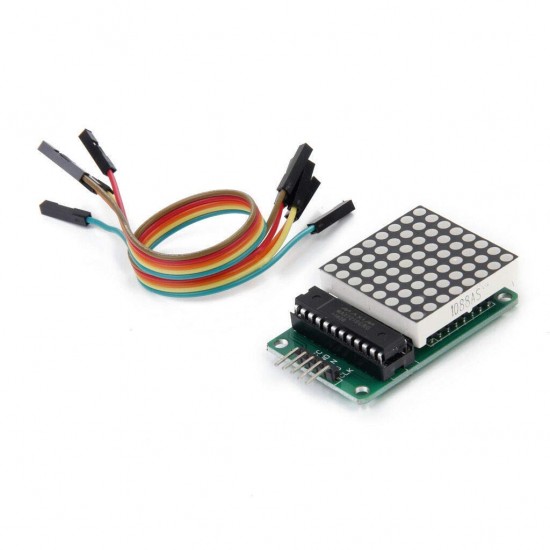

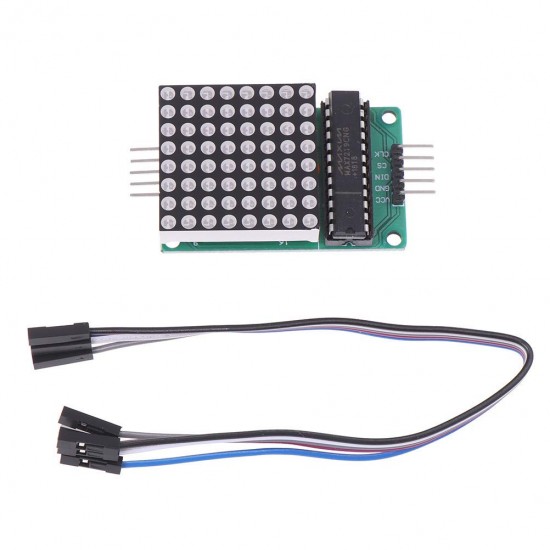

- Package Include 1 x Dot Matrix Display Module
0 samples sold
4477 views
₹1,120.00
