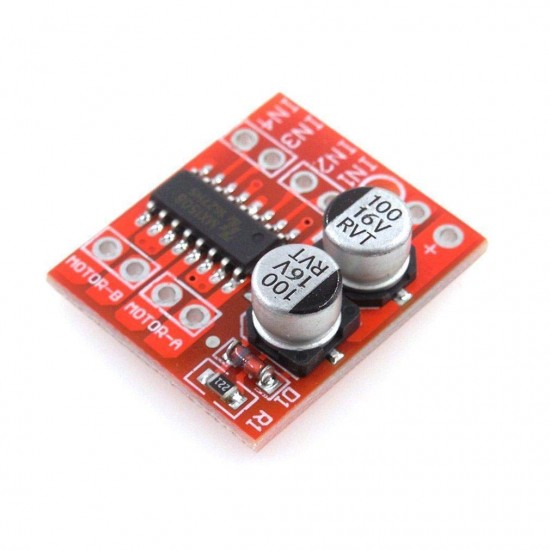

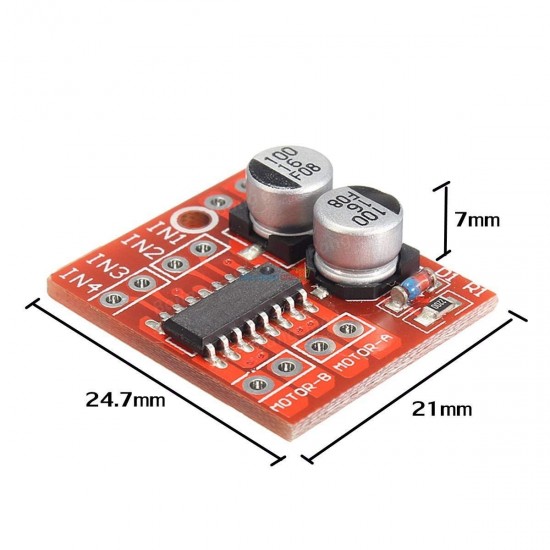

2 Channel L298N MINI DC Stepper Motor Drive Module Board reversing PWM Speed Dual H Bridge L298

2 Channel L298N MINI DC Stepper Motor Drive Module Board reversing PWM Speed Dual H Bridge L298
2 Channel L298N MINI DC Stepper Motor Drive Module Board reversing PWM Speed Dual H Bridge L298
2 Channel L298N MINI DC Stepper Motor Drive Module Board reversing PWM Speed Dual H Bridge L298
2 Channel L298N MINI DC Stepper Motor Drive Module Board reversing PWM Speed Dual H Bridge L298
2 Channel L298N MINI DC Stepper Motor Drive Module Board reversing PWM Speed Dual H Bridge L298
2 Channel L298N MINI DC Stepper Motor Drive Module Board reversing PWM Speed Dual H Bridge L298
2 Channel L298N MINI DC Stepper Motor Drive Module Board reversing PWM Speed Dual H Bridge L298

    Product Specifications:


    • motor drive module is very suitable for use in battery powered smart car, toy car, robot and so on, the supply voltage of 2V~10V can simultaneously drive two DC motor or 1 4 line 2 phase stepper motor, can achieve positive and speed control function, each current to 1.5A continuous current. The peak current is up to 2.5A, with thermal protection and automatic recovery.
    • built-in low conduction resistance switch MOS, heating minimum, without radiator, small volume, energy saving, is your ideal choice for battery powered.
    • L298N internal transistor switch, low efficiency, high fever, without heat, heavy volume, the market of L298N is easy to burn out, do not use the original chips, this product can be the perfect replacement.
    • 2 dual 1.5A*2, peak current to 2.5A, built-in overheat protection circuit, do not be afraid of motor stalling burn, automatic recovery after falling temperature. (the smart car voltage and current on the market are within this range
    • Package Include 1 x L298N MINI

    Write a review

    Please login or register to review
    1 samples sold
    6693 views
    ₹160.00
