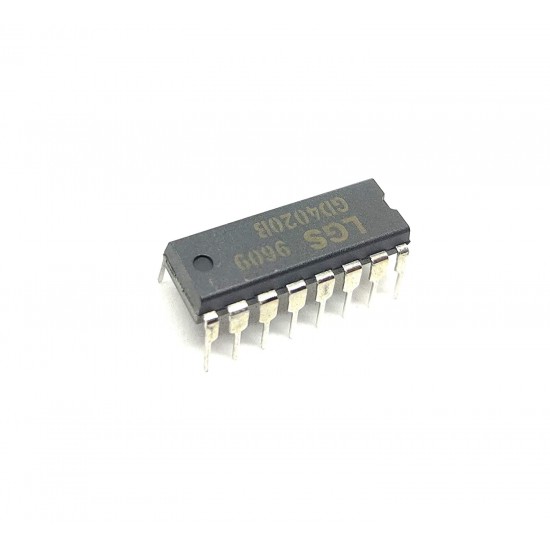

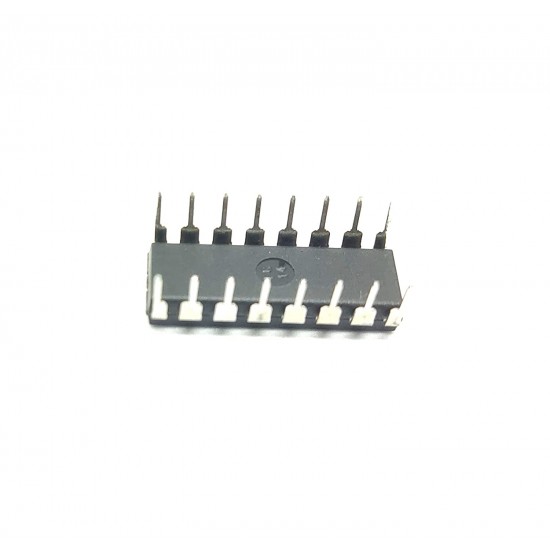

4Pcs 4020 IC CD4020BE Binary Ripple Counter, 24 MHz, 1 Gate, 1 Input, 3 V to 18 V, DIP-16
Product Specification:
- The CD4020BE is a CMOS 14-stage ripple-carry Binary Counter/Divider. All counter stages are master-slave flip-flops. The state of a counter advances one count on the negative transition of each input pulse, a high level on the RESET line resets the counter to its all zeros state. Schmitt trigger action on the input-pulse line permits unlimited rise and fall times. All inputs and outputs are buffered.
- Logic Family / Base Number: CD4020; Counter Type: Binary; Clock Frequency: 24MHz.
- Count Maximum: 16383; No. of Pins: 16Pins; Supply Voltage: 3V - 18V
- Logic IC Family: CD4000; Logic IC Base Number: 4020

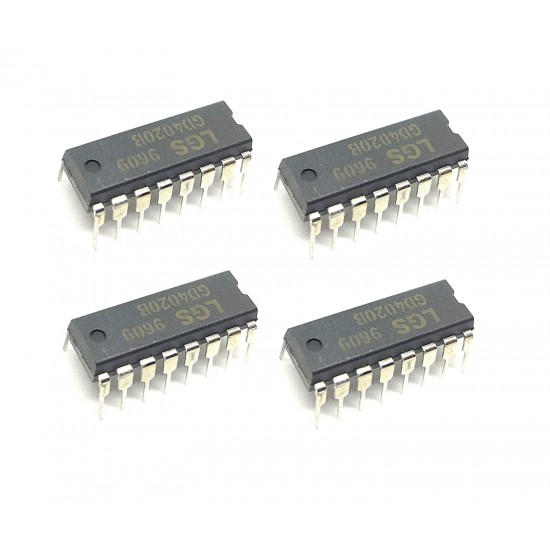

- Package Include: 4 x 4020 IC
0 samples sold
7235 views
₹150.00
