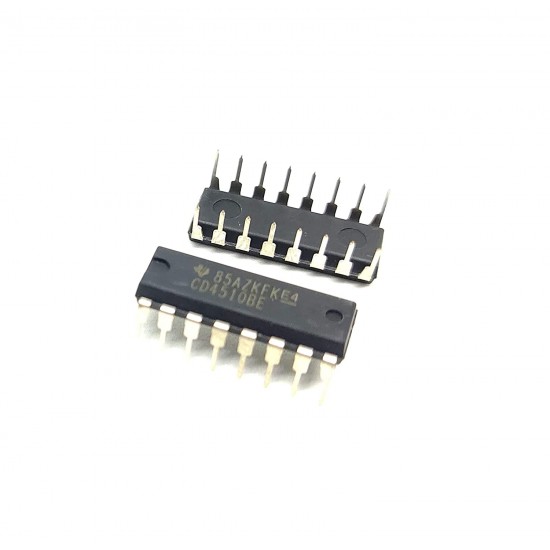

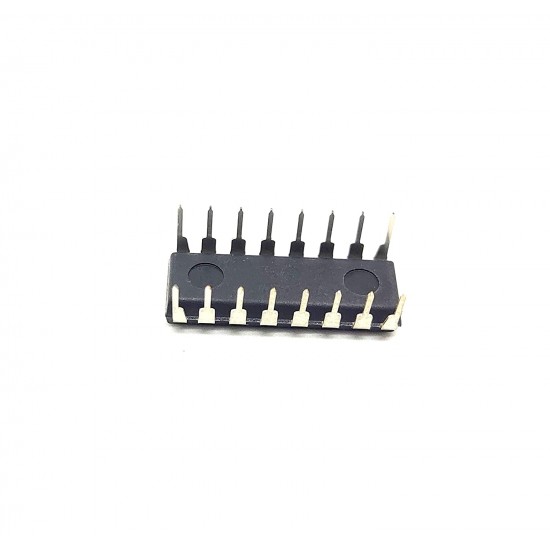

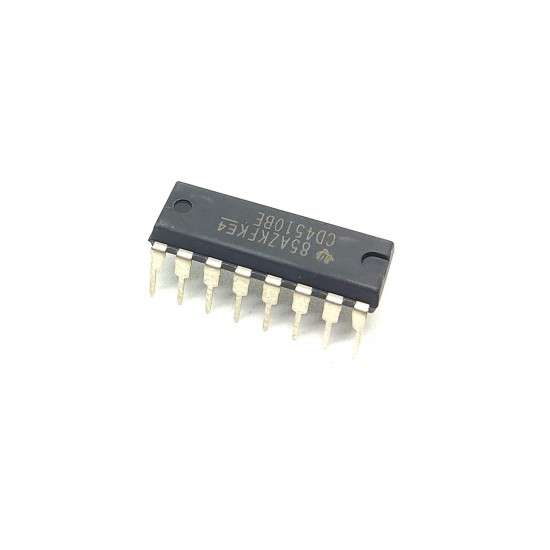

2Pcs CD4510BE 4510 IC CMOS Binary Up/Down Counter, D- Type Flip Flop, 8 MHz, 3 V to 18 V, DIP-16

2Pcs CD4510BE 4510 IC CMOS Binary Up/Down Counter, D- Type Flip Flop, 8 MHz, 3 V to 18 V, DIP-16
2Pcs CD4510BE 4510 IC CMOS Binary Up/Down Counter, D- Type Flip Flop, 8 MHz, 3 V to 18 V, DIP-16
2Pcs CD4510BE 4510 IC CMOS Binary Up/Down Counter, D- Type Flip Flop, 8 MHz, 3 V to 18 V, DIP-16
2Pcs CD4510BE 4510 IC CMOS Binary Up/Down Counter, D- Type Flip Flop, 8 MHz, 3 V to 18 V, DIP-16
2Pcs CD4510BE 4510 IC CMOS Binary Up/Down Counter, D- Type Flip Flop, 8 MHz, 3 V to 18 V, DIP-16
2Pcs CD4510BE 4510 IC CMOS Binary Up/Down Counter, D- Type Flip Flop, 8 MHz, 3 V to 18 V, DIP-16
2Pcs CD4510BE 4510 IC CMOS Binary Up/Down Counter, D- Type Flip Flop, 8 MHz, 3 V to 18 V, DIP-16

Product Specification:

  • The CD4510BE is a CMOS Presettable BCD Up/Down Counter consist of four synchronously clocked D-type flip-flops (with a gating structure to provide T-type flip-flop capability) connected as counters. This counter can be cleared by a high level on the RESET line and can be pre-set to any binary number present on the jam inputs by a high level on the PRESET ENABLE line.
  • The CD4510B will count out of non-BCD counter states in a maximum of two clock pulses in the up mode and a maximum of four clock pulses in the down mode. If the CARRY-IN input is held low, the counter advances up or down on each positive-going clock transition. Synchronous cascading is accomplished by connecting all clock inputs in parallel and connecting the CARRY-OUT of a less significant stage to the CARRY-IN of a more significant stage.
  • The counter can be cascaded in the ripple mode by connecting the CARRY-OUT to the clock of the next stage. Synchronous internal carry propagation. Reset and pre-set capability. Standardized, symmetrical output characteristics.
  • Logic Family / Base Number: CD4510; Counter Type: Presettable Binary, Up / Down; Clock Frequency: 8 MHz; Count Maximum: 4; No. of Pins: 16 Pins; Supply Voltage: 3V - 18V; Logic IC Base Number: 4510.
  • Package Include: 2 x 4510 IC


Write a review

Please login or register to review
0 samples sold
6072 views
₹160.00
