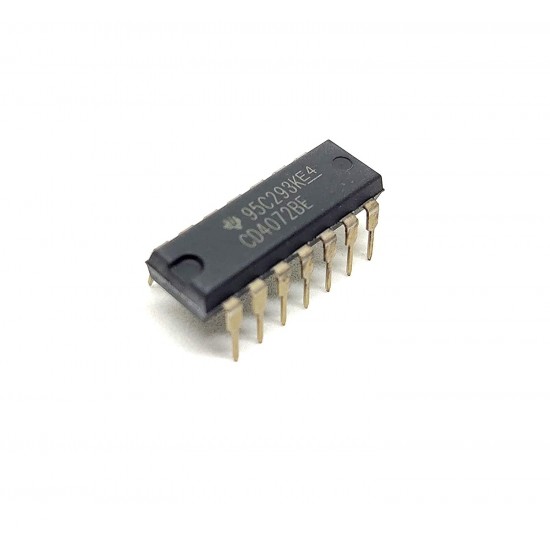

2Pcs CD4072BE 4072 IC Logic Gate IC OR Gate, CD4072, 4 Input, 6.8 mA, 3 V to 18 V, DIP-14
Product Specification:
- The CD4072BE is a CMOS dual 4-input OR Gate provides the system designer with direct implementation of the positive-logic OR functions and supplements the existing family of CMOS gates.
- Medium speed operation - tPLH, tPHL = 60ns (typical) at VDD=10V. Maximum input current of 1µA at 18V.
- Logic Family / Base Number: CD4072; Logic Type: OR; Output Current: 6.8mA; No. of Inputs: 4.
- Supply Voltage: 3V - 18V; No. of Pins: 14Pins; Logic IC Family: CD4000; Logic IC Base Number: 4072.
- Package Include 2 x 4072 IC
0 samples sold
8126 views
₹140.00
