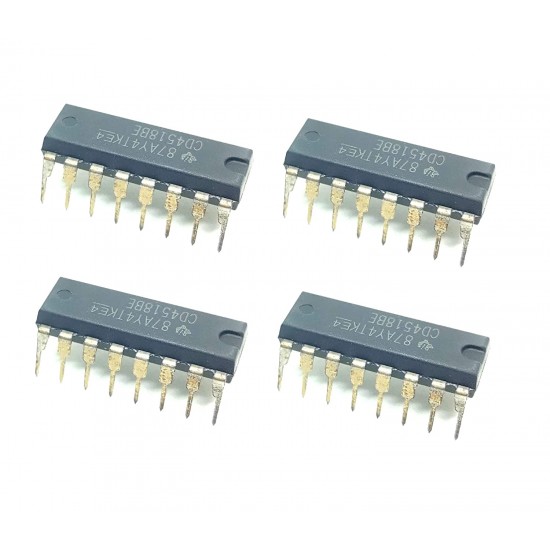

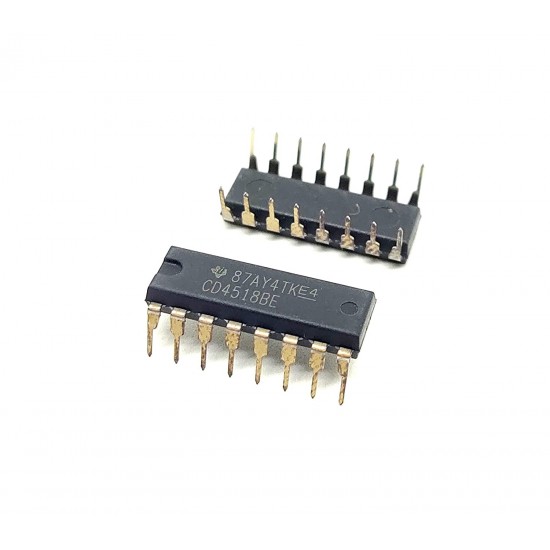

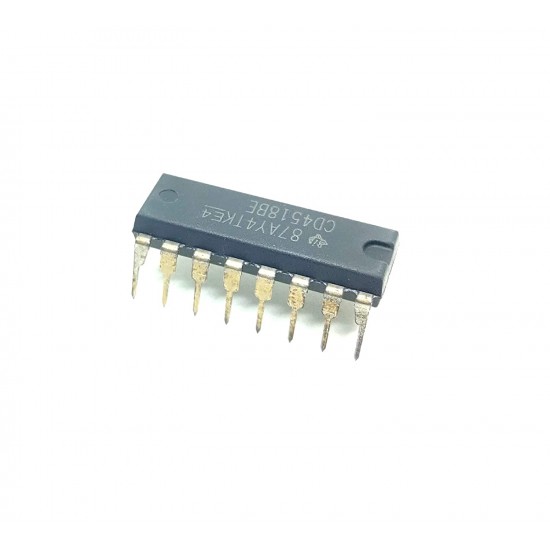

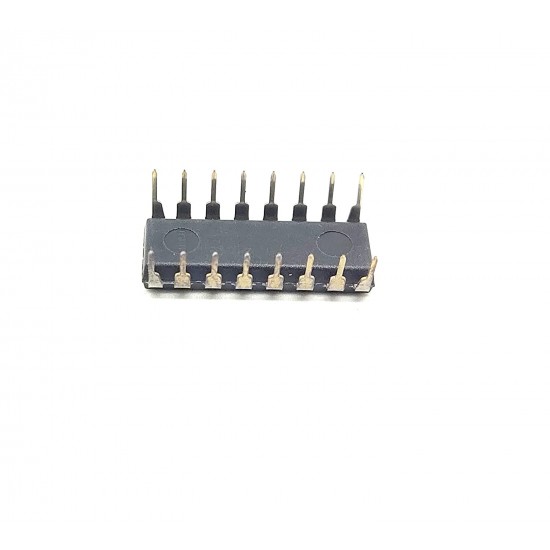

4Pcs CD4518BE 4518 IC Logic IC BCD Up Counter, D- Flip Flop, 8 MHz, 2 Gate, 2 Input, 3 V to 18 V, DIP-16
Product Specification:
- The CD4518BE is a CMOS dual BCD Up-counter consist of two identical, internally synchronous 4-stage counters. The counter stages are D-type flip-flops having interchangeable CLOCK and ENABLE lines for incrementing on either the positive-going or negative-going transition.
- For single-unit operation the ENABLE input is maintained high and the counter advances on each positive-going transition of the CLOCK. The counters are cleared by high levels on their RESET lines. The counter can be cascaded in the ripple mode by connecting Q4 to the enable input of the subsequent counter while the CLOCK input of the latter is held low.
- Logic Family / Base Number: CD4518; Counter Type: BCD, Up; Clock Frequency: 8 MHz; Count Maximum: 9
- No. of Pins: 16Pins; Supply Voltage: 3V - 18V; Logic IC Base Number: 4518
- Package Include: 4 x 4518 IC
