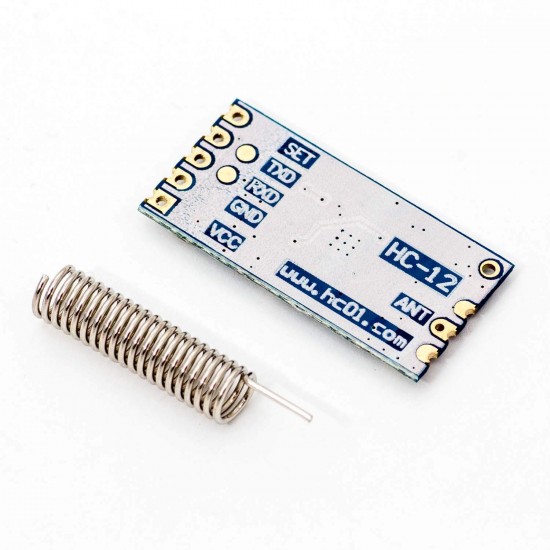

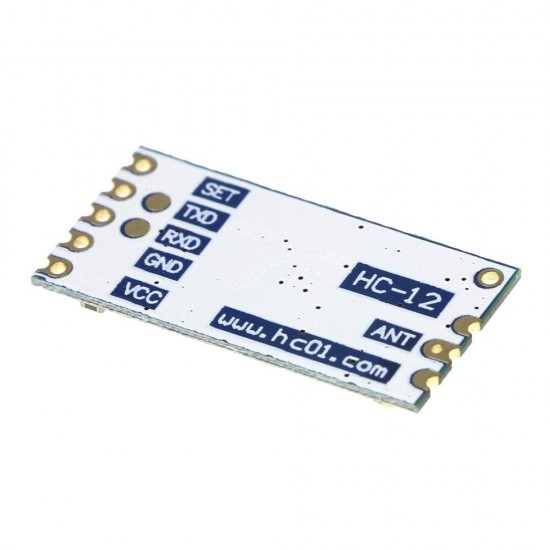

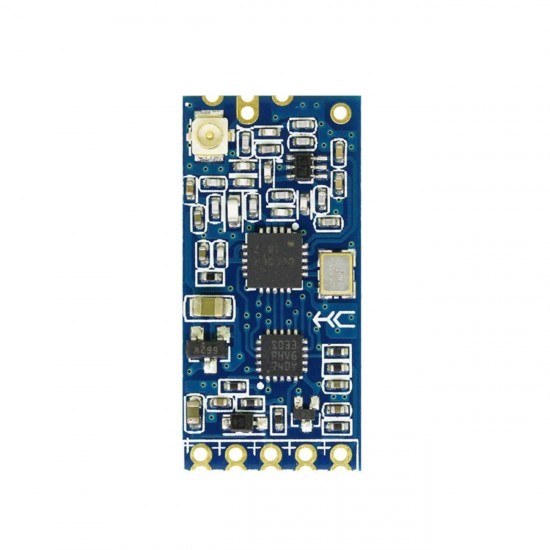

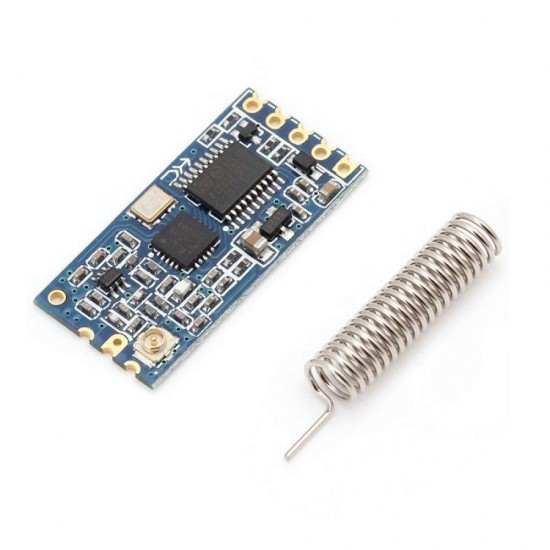

HC-12 433Mhz SI4463 Wireless Serial Port Module 1000m Replace Bluetooth with Antenna
Product Specification:
- Power supply voltage is 3.2V ~5.5V.(If the module is to be in the transmitting state for a long time, it is recommended to connect a 1N4007 diode in series when the power supply voltage exceeds 4.5V to avoid the built-in LDO heating of the module.) Long communication distance.The default communication distance (open field test)about 600m (the communication distance can be adjusted up to 1000m, the air baud rate is 5000bps).
- Operating frequency range(433.4—473.0MHz).Transmit power(max: 20dBm)
- Default idle current: 16MA (module operating current is different in different operating modes).
- Default factory setting: working mode FU3, baud rate 9600bps, communication channel CH001 (433.4M).
- Package Include 1 x HC-12 Wireless Bluetooth Module
0 samples sold
4365 views
₹480.00
