1kg Load Cell Digital Portable Electronic Kitchen Scale Weight Weighing Sensor For Scale
Product Specifications:

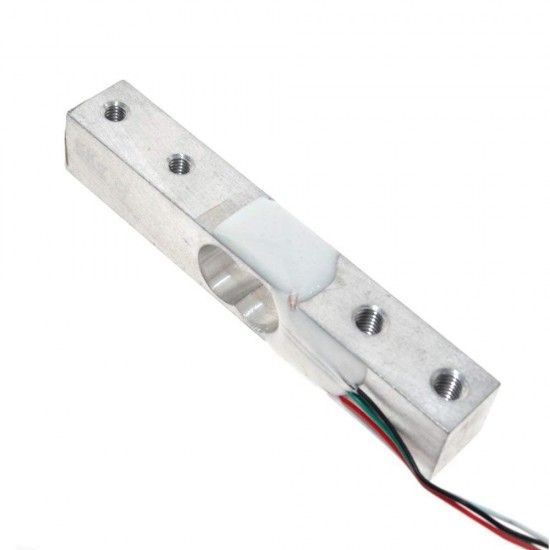

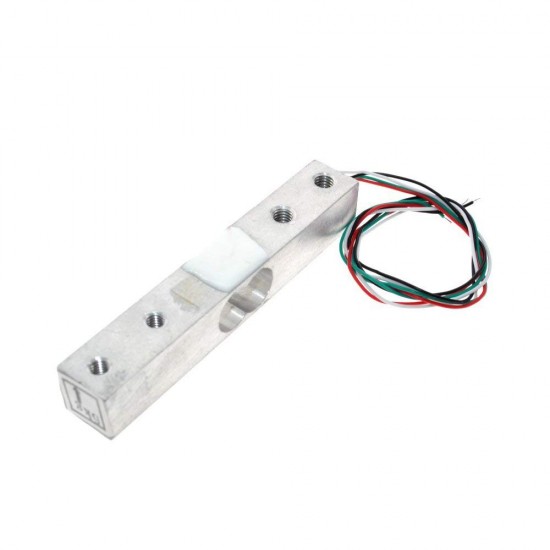

- Load cell:Sturdy aluminum alloy construction with strain gauges pre-attached with strain relieved wires. Accurate measures forces from 0-1kg

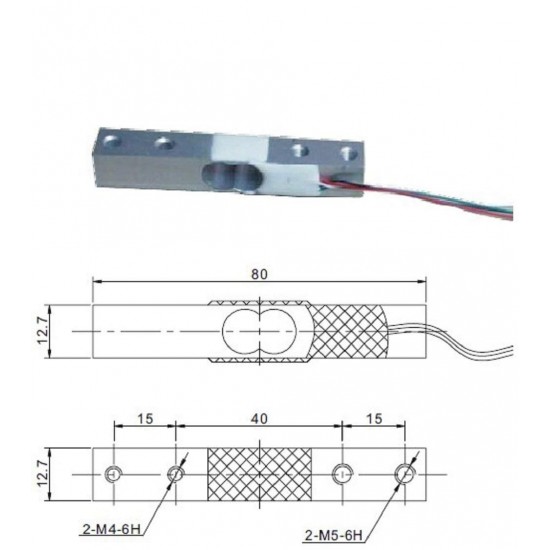

- Load cell specs: 22 cm (8.5 in) wire leads pre-attached. Dimensions 12.7 mm high, 12.7 mm wide, 80 mm long (0.5 in x 0.5 in x 3.15 in). 4 mounting holes, 15 mm spacing on each side. One both holes tapped M4 thread, the other side both holes tapped M5 thread.
- 5-10V drive voltage applied, the force is directly output as a voltage change signal.
- Connection (to HX711): Red to E+ ; Black to E- ; Green to A+ ; White to A-
- Package Content: 1 x 1Kg Load Cell
