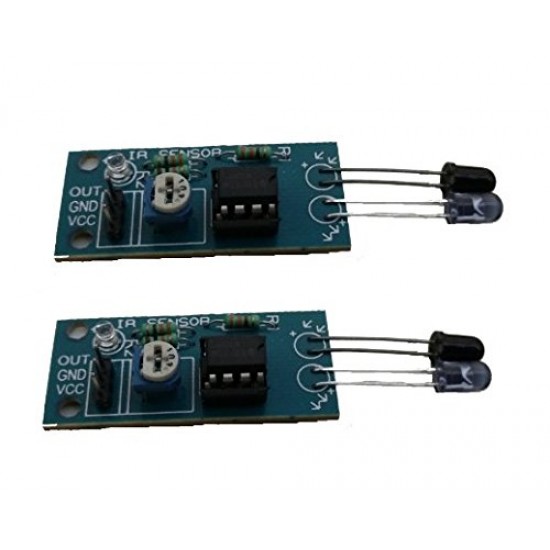

2pcs IR Infrared Obstacle Avoidance Sensor Module for DIY Smart Car Robot

2pcs IR Infrared Obstacle Avoidance Sensor Module for DIY Smart Car Robot
2pcs IR Infrared Obstacle Avoidance Sensor Module for DIY Smart Car Robot

Product Specifications:

  • When the module detects an obstacle in front of the signal , the green indicator light on the board level , while low-level continuous output signal OUT port , the module detects the distance 2 ~ 30cm, detection angle 35 °, the distance can detect potential is adjusted clockwise adjustment potentiometer to detect the distance increases ; counterclockwise to adjust the potentiometer to reduce the detection distance .
  • Active infrared sensors to detect the reflected , and thus the shape of the reflectivity of the target detection range is critical . The minimum detection distance which black , white maximum ; small objects from a small area , a large area from the Grand .
  • The output port OUT sensor module can be directly connected to the microcontroller IO port , you can directly drive a 5V relay ; Connection : VCC-VCC; GND-GND; OUT-IO
  • Each module shipments comparing the threshold voltage has been adjusted by the potentiometer is good , not exceptional circumstances, do not arbitrarily adjust the potentiometer.
  • Package Include 1 x IR Sensor
