MAX6675 Module with K Type Thermocouple Thermocouple Sensor Can Measure upto 800 Degrees for DIY

MAX6675 Module with K Type Thermocouple Thermocouple Sensor Can Measure upto 800 Degrees for DIY
MAX6675 Module with K Type Thermocouple Thermocouple Sensor Can Measure upto 800 Degrees for DIY
MAX6675 Module with K Type Thermocouple Thermocouple Sensor Can Measure upto 800 Degrees for DIY
MAX6675 Module with K Type Thermocouple Thermocouple Sensor Can Measure upto 800 Degrees for DIY
MAX6675 Module with K Type Thermocouple Thermocouple Sensor Can Measure upto 800 Degrees for DIY
MAX6675 Module with K Type Thermocouple Thermocouple Sensor Can Measure upto 800 Degrees for DIY
MAX6675 Module with K Type Thermocouple Thermocouple Sensor Can Measure upto 800 Degrees for DIY
MAX6675 Module with K Type Thermocouple Thermocouple Sensor Can Measure upto 800 Degrees for DIY
MAX6675 Module with K Type Thermocouple Thermocouple Sensor Can Measure upto 800 Degrees for DIY
MAX6675 Module with K Type Thermocouple Thermocouple Sensor Can Measure upto 800 Degrees for DIY
MAX6675 Module with K Type Thermocouple Thermocouple Sensor Can Measure upto 800 Degrees for DIY

    Product Specifications:

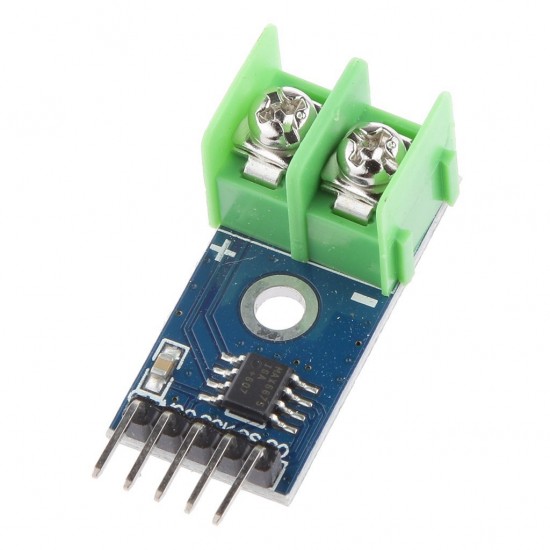

    • This MAX6675 Module with K Type Thermocouple Sensor Measure 1024°C Temperature sensor makes use of the Maxim MAX6675 K-Thermocouple to digital converter IC to provide a microcontroller compatible digital serial interface (SPI compatible) for giving an accurate temperature compensated measurement of the supplied K-Type thermocouple sensor. It has a 12-bit resolution providing temperature readings from 0°C to 1024°C (max temperature of the supplied sensor is 450°C) with a resolution of 0.25°C.

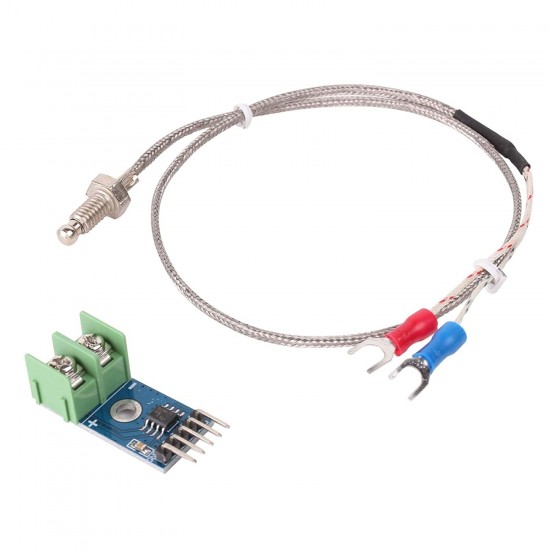

    • Screw terminals allow for connection to the thermocouples spade connectors and a 5 pin standard 0.1″ header provides an interface to a microcontroller such as an development board. Supplied thermocouple sensor has a diameter of 4.5mm with a 6mm threaded mounting bolt. The total length of the sensor including cable and spade connectors is ~100cm.
    • Internal integrated cold junction compensation circuit; Temperature signal can be converted into 12-bit digital Embedded thermocouple break detection circuitry.
    • K-type temperature probe Simple SPI serial output temperature. High impedance differential inputs. Thermocouple break detection. 2000V of ESD signal.
    • Package Include 1 x MAX6675, 1 X K Type Thermocouple


    Write a review

    Please login or register to review
    0 samples sold
    4951 views
    ₹480.00
